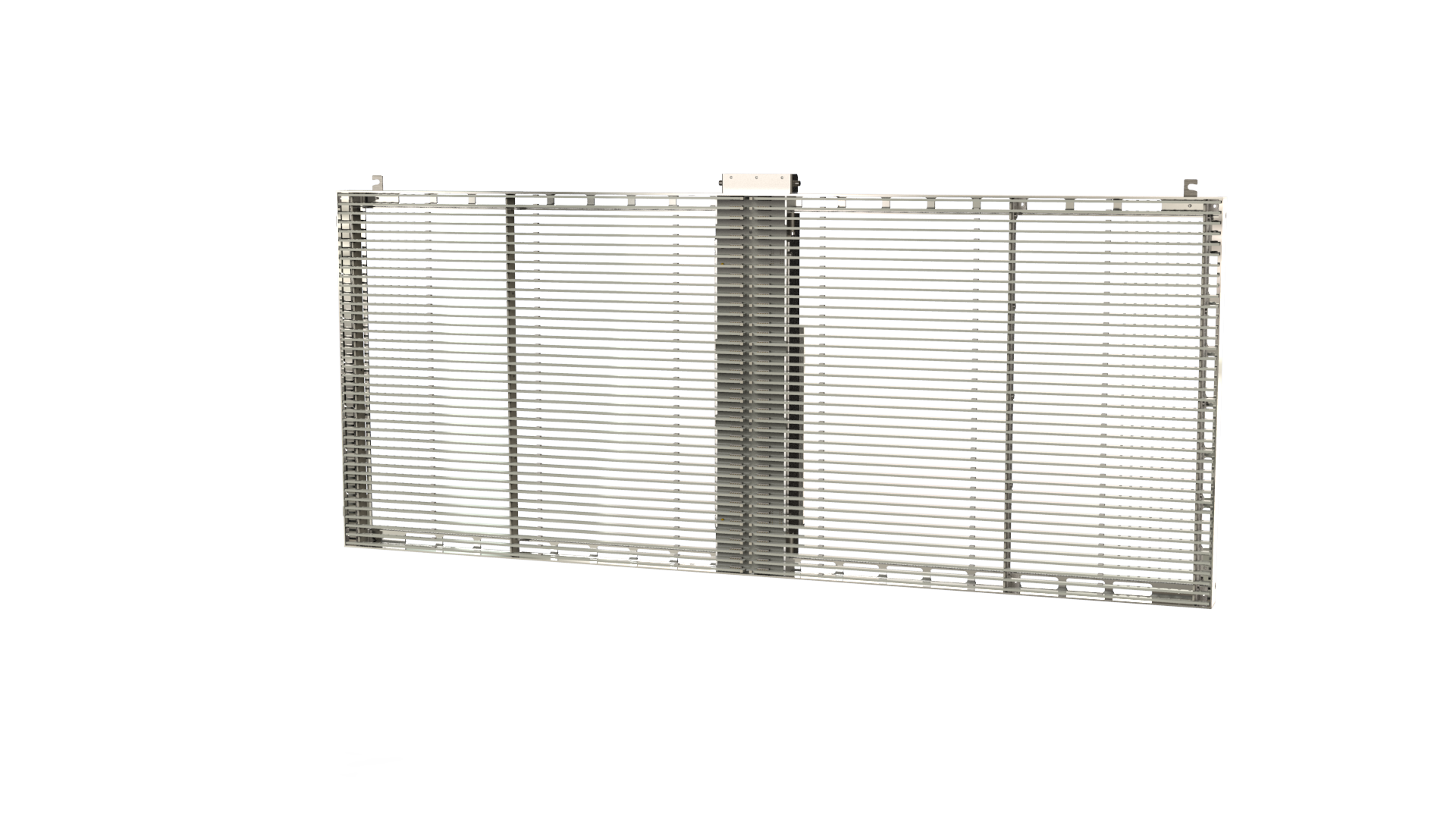

Flexi-Series Advertising Glass

  • Designed for temporary or permanent displays
  • Supplied in 960mm(w) x 400mm(h) sized panel modules
  • Can be used to create any sized display, Connects like Building Blocks
  • Flexi Series is available in 5mm, 8mm & 10mm pitch options
Model 5MM 8MM 10MM
Pixel Pitch(mm) 5 x 8 7.5 x 8 10
LED Model SMD3528 SMD3528 SMD3528
Brightness(nit) 6500 6000 6000
Transparency 68% 68% 75%
Display size(mm) 960 X 400 960 X 400 960 X 400
Display resolution 192 X 50 128 X 50 96 X 40
Resolution(dot/㎡) 25000 16666 10000
Max. Power(W/㎡) 800 800 800
Avg. Power(W/㎡) 240 240 240
 Working Temp  -10~40℃ -10~40℃  -10~40℃
Ingress Protection IP42 IP42 IP42
Refresh rate(Hz) 1000~1500 1000~1500 1000~1500
Weight(kg/㎡) 12 12 12
